Fabio Leonardi Replacement Parts and Schematic Diagrams

Fabio Leonardi Replacement Parts and Schematic Diagrams

With tomato season rapidly approaching, now is the time to start thinking about your tomato milling machine. We've talked before about why we hold Fabio Leonardi tomato milling machines as the best available on the market, and our Fabio Leonardi Buying Guide helps break down the make and model that will best suit your needs - but, how do you make sure your Fabio machine stays in perfect working order if something goes wrong along the way?

Easy! With our handy parts diagrams and manuals below! Covering everything from the Fabio Leonardi milling attachments to their covered, uncovered and MR10 models, our parts diagrams and schematics are here to help you figure out what replacement part you might need, what's its called and where to find it! Parts that we currently carry are hyperlinked (you can click on the part name to go directly to that product page). See a part that's not currently hyperlinked? Send us an email at info@consiglioskitchenware.com with your machine model and the part number, and we'll try our best to get it for you!




Menu:

Click on one of the links below to jump directly to the corresponding parts diagram.

SP2, SP3 and SP5 - Fabio Leonardi Tomato Milling Attachment Parts and Schematics

MR2, MR8 and MR 7 - Fabio Leonardi Covered Tomato Milling Machine Motor Parts and
Schematics

MR2 MR0 and MR9 - Fabio Leonardi Uncovered Tomato Milling Machine Motor Parts and Schematics

MR10 - Fabio Leonardi 1.5HP Uncovered Tomato Milling Machine Motor Parts and Schematics

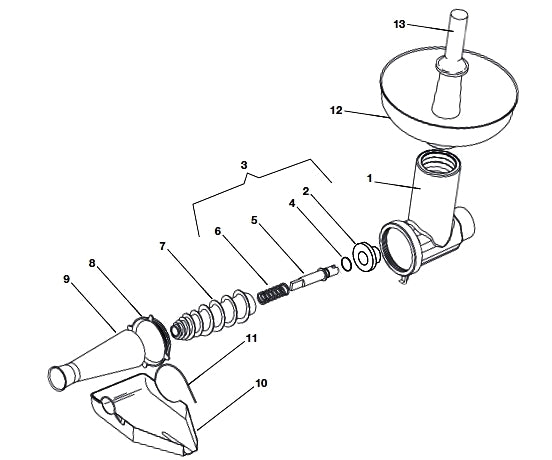

SP2, SP3 and SP5 - Fabio Leonardi Tomato Milling Attachment Parts Diagram



Fabio Leonardi SP2, SP3 and SP5 Tomato Milling Attachment Parts Diagram



 Click here for a PDF version of this SP2, SP3 and SP5 - Fabio Leonardi Tomato Milling Attachment Parts Diagram!

[Back to Top]

1. Body/Neck
2. Rush/ Bushing:
Replacement Bushing for SP2, SP3 and SP5
3. Complete Drive Unit
4. O-Ring

SP2 O-Ring /Hopper Gasket /Washer
SP3 O-Ring / Hopper Gasket / WasherSP5 O-Ring / Hopper Gasket / Washer

5. Drive Shaft:
Replacement Drive Shaft for SP2

Replacement Drive Shaft for SP3 & SP5
6. Spring:
Replacement Spring for SP2
Replacement Spring for SP3 & SP5
7. Screw Feeder/Auger:
Replacement Auger for SP2
Replacement Auger for SP3
Replacement Auger for SP5

8. Ring/ Collar (Locking Ring):
- Replacement Ring/Collar for SP3
Replacement Ring/Collar for SP5
9. Filter/ Screen:
Replacement Filter Screen for SP2
Replacement Filter Screen for SP3
Replacement Filter Screen for SP5
10. Trough/Scivolo (sauce tray)
Replacement Trough for SP2
Replacement Trough for SP3
Replacement Trough for SP5
11. Trough Brace:
12. Funnel / Hopper
Replacement Funnel/Hopper for SP2
Replacement Funnel/Hopper for SP3
Replacement Funnel/Hopper for SP5
13. Pestle

[Back to Top]


MR2, MR8 and MR 7 - Fabio Leonardi Covered Tomato Milling Machine Motor Parts Diagram

[Back to Top]

1) Power Cable
2) Switch
3) Grommet
4) Self Tap in Screw (4pcs)
5) Powder Coated Cover
Replacement Cover and Base for MR2
- Replacement Cover and Base for MR8
Replacement Cover and Base for MR7
6) Tribulate Screw (4pcs)
7) Motor
10) Drive Gear Bush
11) Cast Iron Drive Gear
12) O-Ring
15) Big Flange Bush

16) Flange Gasket
17) Nylon Spacer
18) Iron Spacer
19) Snap Ring
20) Flange Screw
21) Flange
22) Knob
23) Flange Bush
24) Step Gear
25) Base Feet (4pcs)
26) Powder Coated Base
Replacement Cover and Base for MR2
Replacement Cover and Base for MR8
Replacement Cover and Base for MR7

Not Shown:
Replacement Fan Blade for MR2
Replacement Fan Blade for MR8
Replacement Fan Blade for MR7

[Back to Top]


MR2 MR0 and MR9 - Fabio Leonardi Uncovered Tomato Milling Machine Motor Parts Diagram

[Back to Top]

1) Motor HP
2) Fan Cover
MR2 Replacement Fan Cover
MR0 Replacement Fan Cover
MR9 Replacement Fan Cover
3) Nut (4 pcs)
5) Switch
6) Base:
MR2 Replacement Base
MR0 Replacement Base
MR9 Replacement Base
7) Rubber Pad (4 pcs)
10) Little Motor/Flange Bush

11) Big Flange Bush
12) Cast Iron Drive Gear
13) Plastic Step Gear:
MR2/ MR0 / MR9 Replacement Step Gear
14) O-Ring
15) Gear Bush
17) Flange
18) Screw (4pcs)
19) Nylon Spacer
20) Iron Spacer
21) Snap Ring
22) Cork Gasket
23) Knob

Not Shown:
Replacement Fan Blade for MR2
Replacement Fan Blade for MR0
Replacement Fan Blade for MR9

[Back to Top]


 MR10 - Fabio Leonardi 1.5HP Uncovered Tomato Milling Machine Motor Parts Diagram



[Back to Top]

1) Base:
MR10 Replacement Base
2) Motor
3) Nut
4) Fan Cover:
MR10 Replacement Fan Cover
5) Switch
6) Power Cable
10) Gear Bush
11) Cast Iron Drive Gear
12) O-Ring

15) Nylon Spacer
16) Iron Spacer
17) Snap Ring
18) Screw (5pcs)
19) Flange
20) Knob
21) Cork Gasket
22) Big Flange Bush
23) Little Motor/Flange Bush
24) Rubber Pad
25) Plastic Step Gear:
MR10 Replacement Plastic Step Gear

Not Shown:
MR10 Replacement Fan Blade

[Back to Top]
